Ball valves for gas

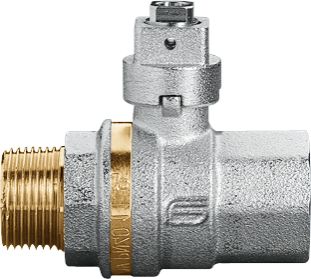

Venus

Application fields:
The VENUS series is particularly recommended in gas installations families 1°, 2°, 3° (EN437).
• The VENUS valve complies to the Norm ATEX 94/9/CE concerning the protection of systems for use in potentially explosive athmospheres (group II category 2) ATEX marking is at customer’s request (please specify when ordering). * On request the valve is available with ATEX certificate.

Threaded end connections:
• Standard female and male according to UNI ISO 7/1 (UNI ISO 10226).

Operation devices:
Aluminium lever, aluminium T-handle, steel lever, square cap, adaptor for buried service, sealing cap sealable T-handle.

Available colours:
yellow.

All the valves comply with the regulation 2014/68/CE and are tested 100% on pneumatic seal with electronic control.

• The VENUS valve, with full bore, has been designed to comply with European regulation EN331 covering gas ball valves. Its construction guarantees excellent reliability at low and very low pressures which are typical in gas installations.

• The VENUS series complies to the regulation (UE) 305/2011 CPR (Building Material)

Bore:
full.

Stem:
anti blow out.

Seats:
high resistance virgin PTFE.

Upper seal:
4 seals
1 PTFE ring - high pressure
2 anti-friction self-adjusting cone shaped seals, in PTFE - medium and low pressure
1 O-Ring - low pressure
